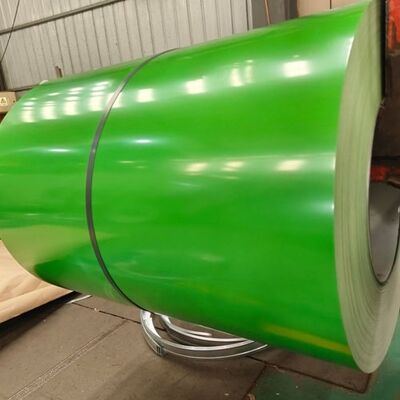

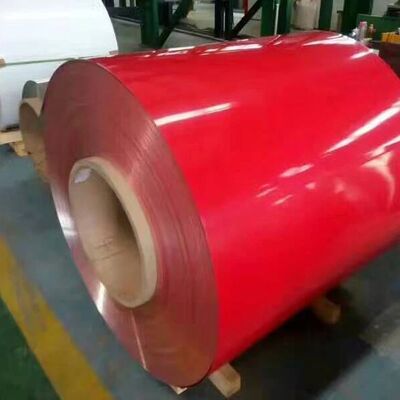

HDP Coated High Durability PPGL Galvalume Steel Coil For Agricultural Barns & Sheds
Produktdetails:
| Herkunftsort: | China |
| Markenname: | Huiyi-PPGL |
| Zertifizierung: | EN 10346, ASTM A792, JIS G3322, ISO 9001 |
| Modellnummer: | DX51D+AZ |
| Dokumentieren: | HUIYI CATALOGUE.pdf |
Zahlung und Versand AGB:
| Min Bestellmenge: | 25 Tonnen |
|---|---|
| Preis: | Verhandlungsfähig |
| Verpackung Informationen: | Exportieren von Packungen mit 3Layers einschließlich des wasserdichten Kunststofffilms ， wasserdicht |
| Lieferzeit: | 15-30 Tage |
| Zahlungsbedingungen: | L/C, D/P, T/T |
| Versorgungsmaterial-Fähigkeit: | 5000 mT/Monat |
|
Detailinformationen |
|||
| Produktname: | Vorgefärbte Galvalum-Stahlspule | Produkttyp: | Spule / Blech / Streifen |
|---|---|---|---|
| Beschichtungsgewicht: | 30-180G/㎡ | Spulengewicht: | 3 - 8 Tonnen |
| Dicke: | 0.12 - 2,0 mm | Breite: | 600 mm bis 1500 mm |
| Spulen-ID: | 508 mm/610 mm | Hauptmerkmal: | Beständig gegen Ammoniak, Feuchtigkeit und chemische Desinfektionsmittel |
Produkt-Beschreibung
HDP Coated High Durability PPGL Galvalume Steel Coil For Agricultural Barns & Sheds
Our HDP Coated High Durability PPGL Galvalume Steel Coil is engineered for agricultural barns and sheds, combining a 55% aluminum-zinc alloy coating (AZ150) with a HDP (High Durability Polyester) topcoat. The HDP coating delivers 10–15 years of outdoor durability, resisting UV, chalking, fading, and agricultural corrosives like ammonia and moisture—while AZ150 provides 2–4 times the corrosion resistance of standard galvanized steel. This makes HDP-coated PPGL a superior, cost-effective choice for demanding livestock buildings.
Product Specifications
| Base Material | Galvalume Steel (Hot‑dipped) |
|---|---|
| Zinc Coating |
AZ30 - AZ180 |
| Thickness | 0.12 - 2.0mm |
| Width | 600mm - 1500mm |
| Topcoat Type | HDP (High Durability Polyester) |
| Color Options | All RAL colors / Custom colors available |
| Paint System | Primer + Topcoat (double-coated) |
| Key Performance | 10–15 year outdoor durability |
Applications
● Livestock Barn Roofing & Cladding: Primary roofing and siding material for cattle, pig, and poultry barns requiring protection against ammonia, moisture, and chemical disinfectants.
● Agricultural Storage Sheds: Roofing and wall panels for grain storage, hay barns, and equipment shelters where long‑term UV and weather resistance are critical.
● Greenhouse Structures: Frames and cladding for agricultural greenhouses, chicken houses, stables, and hay houses exposed to high‑humidity environments.
● Farm Workshops & Implement Sheds: Wall panels, protective cladding, and roofing for machinery storage and maintenance facilities that require durability and easy cleaning.
Packaging and Shipping
Triple-Shield Packaging
VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).
Global Logistics
FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.
Quality Assurance
Pre-shipment inspection and moisture indicators for transit protection.
FAQ
Do you provide samples?
Yes, for regular sizes sample is free, buyer need to pay freight cost.
How can I get a quotation?
You can leave us message, and we will reply in time. And you can also find our contact details on the Contact page.
How long is the delivery time?
It depends on the order quantity, normally the delivery time takes around 15-30 working days. Please kindly contact us before ordering.
