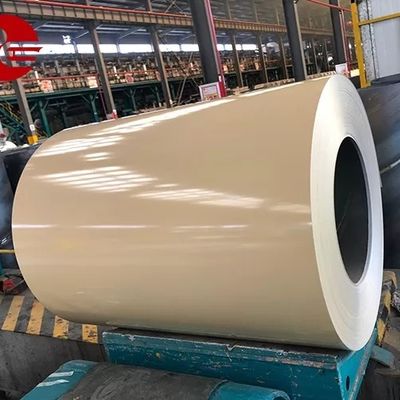

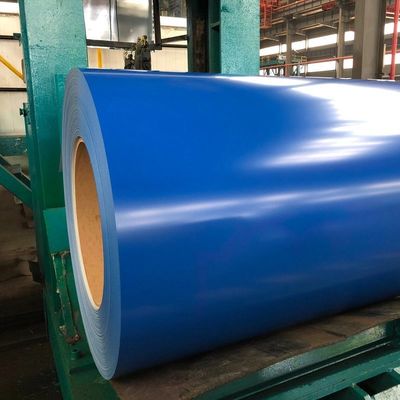

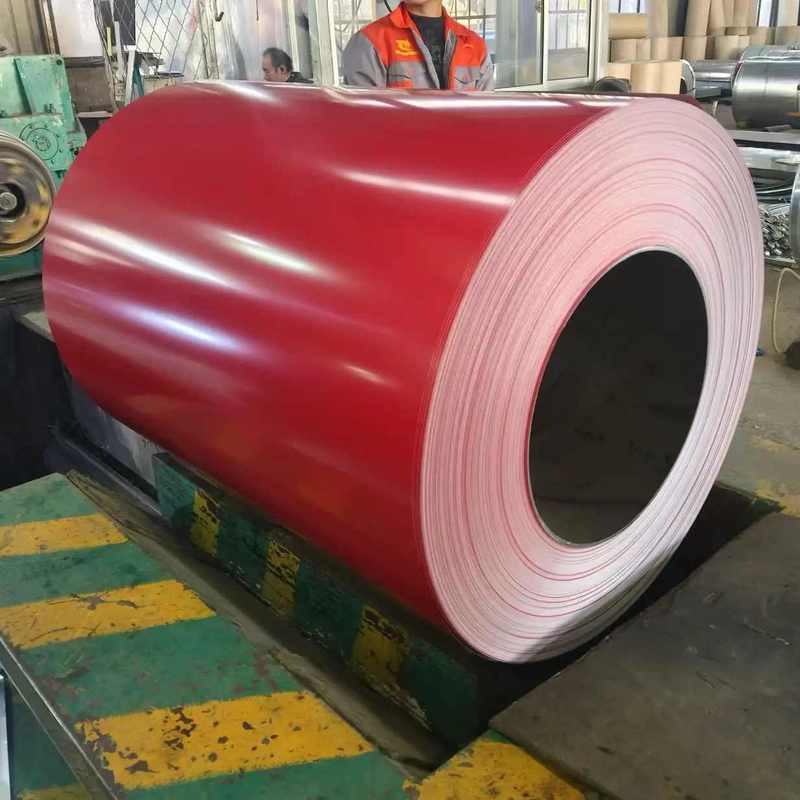

PVDF Coating Weatherable Prepainted Galvalume Steel Coil For Architecture
Produktdetails:
| Herkunftsort: | CHINA |
| Markenname: | HuiYi-PPGL |
| Zertifizierung: | ISO,ASTM |
| Modellnummer: | CGLCC, G550 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 25m |
|---|---|
| Preis: | Verhandlungsfähig |
| Verpackung Informationen: | VCI Kraftpapier + 0,3 mm PE-Film + Stahlgeschlagene Paletten mit Kantenwächtern |
| Lieferzeit: | 15-30 Tage |
| Zahlungsbedingungen: | T/t, l/c, d/p |
| Versorgungsmaterial-Fähigkeit: | 5000 mT/Monat |
|
Detailinformationen |
|||
| Produktname: | Vorgestrichener Galvalume-Stahl | Material: | Galvalume Stahl |
|---|---|---|---|
| Größe: | (0,3-1,2) mm × (600-1250) mm | Farbe: | RAL-Farben |
| Zugfestigkeit: | 270-550 MPA | Ertragsfestigkeit: | 245-495 MPA |
| Beschichtungsstruktur: | Grundierung + PVDF-Decklack | Garantie: | 20 Jahre Farbbeständigkeit |
Produkt-Beschreibung
Our PVDF Coating Weatherable Prepainted Galvalume Steel Coil is engineered for superior architectural performance in demanding environments. This product combines the inherent corrosion resistance of a 55% aluminum-zinc alloy substrate (AZ100-AZ150) with a top-tier Polyvinylidene Fluoride (PVDF) resin coating. The exceptional strength of the fluorine-carbon bond in PVDF provides outstanding resistance to solar radiation, chemicals, and pollution, effectively resisting coating degradation caused by solar oxidation. While PVDF coatings may come at a higher cost compared to systems like polyester (PE) or silicone modified polyester (SMP), their near-maintenance-free characteristics and long service life make them the preferred choice for landmark buildings in highly corrosive or high-salt areas. This coil is an ideal, cost-effective solution over its lifespan for iconic structures like international airports, convention centers, and skyscrapers.
| Parameter | Specification |
|---|---|
| Base Material | DX51D+AZ (ASTM A792) |
| Thickness | 0.3mm - 1.2mm (±0.03mm) |
| Width | 600mm - 1,250mm |
| Coating Weight | AZ100-AZ150 (100-150g/m²) |
| Paint System | PVDF (20-30μm) |
| Antibacterial Efficiency | ≥99% (vs. E. coli & S. aureus) |
| Surface Finish | Smooth/Matte, various embossed patterns available |
| Tensile Strength | 270-500 MPa |
| Salt Spray Resistance | 1,000hrs (ASTM B117) |
| Standards | ASTM A792, ISO 9001 |
- Architectural Cladding: Curtain walls, facades, and wall panels for commercial and public buildings.
- Roofing Systems: Long-lasting roofs for industrial plants, airports, and sports stadiums.
- Architectural Elements: Soffits, rain gutters, downpipes, and decorative panels.
- Colors: Full range of RAL colors, including custom matching.
- Surface Finish: Smooth, Matte, Woodgrain, Stucco, and other embossed patterns.
- Dimensions: Customized shearing to your required length and width.
- MOQ: Competitive Minimum Order Quantity, with sample services available.
- Triple-Shield Packaging: VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).
- Global Logistics: FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.
Q: When will you arrange production for prepainted steel coil?
In 7 workdays when we receive your advance payment.
Q:What s the payment term for color coated steel coil?
A:30-50% TT in advance(based on your qty ), 70% balance against copy B/L in 7 workdays.
Q:When will you send BL copy?
A:In 3-5 workdays after shipment date.
Q:When will you send original Documents?
A:In 3-5 workdays when we get the balance.
Q: What is the lead time for samples?
A: Samples are available in 7-10 days after detailed requirements confirmation.
Q:What is your working time?
A: Our online service time is Beijing time: 8:00-22:00. After 22:00, we will reply to your inquiry in the coming working day.
